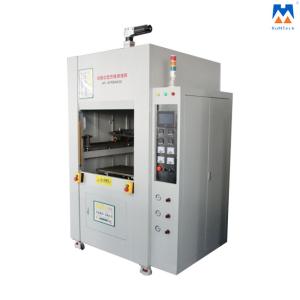

Servo Control Hot Plate Plastic Welding Machine for Automotive Parts Welding
The hot plate welding machine is welding parts by a heated plate directly or indirectly. The hot plate is designed between the toolings for two fixtures of the parts to be welded.
When the parts are close to or contact the heated plate, plastic parts begin to get melt, when reaching a certain degree of melting, the plastic parts separate, the heated plate moves out, then two pieces of parts start to move together and welded together with a certain press.
After welding, the two fixtures separate and welded products are finished after cooling for a while.
Technical parameters:
| Product Name | Servo Control Hot Plate Plastic Welding Machine |
| Voltage(V) | 380 |
| Current frequency(HZ) | 50 |
| Heating power(KW) | 57.6 |
| Total power for servo motors(KW) | 17.4 |
| Total power for overall machine(KW) | 90 |
| Air pressure(Mpa) | 0.6 |
| cold fixture numbers(pairs) | 4 pairs each for upper and lower mould |
| cold fixture vacuum device(pairs) | 2 pairs each for upper and lower mould |
| cold fixture magnetic switches(pcs) | 8 pcs each for upper and lower mould |
| cold fixture small part inspection spots | 6spots each for upper and lower mould |
| cold fixture feeder inspection spots | 2 spots each for upper and lower mould |
| temperature control spots | 8 |
| Tooling quantity designed in one machine | 15 |
Features:
* Equipment Transmission parts adopt servo drive;
* Automatic Connection of the pneumatic and electric parts;
* Fast tool change,tool changing time not more than 2 minutes;
* Adopts servo and displacement rule system, equipment operation precision can be controlled within 0.01 mm.
Application:
* Hot plate type plastic welding machine for welding water tanks, oil tank, cylinder head cover or lights of the automobiles, suitable for welding large size products with complex shapes.
* This model is for the plate size of 1060*600mm. It can be customized for different sizes.
FAQ:
1.What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
45-60 work days since order confirmation.
3. What's the warranty of your hot plate welding machines?
One year Warranty with none human damage.
In this period factory, will responsible for repairing it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we agent your hot plate welding machines in our country or city?
Of course. We are looking for a sole agent in the country who have the willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
7. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
8. could you make it according to our special requirements?
Of course, we can do . Please tell us your idea or your application.
9. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.
Detailed Photos:
