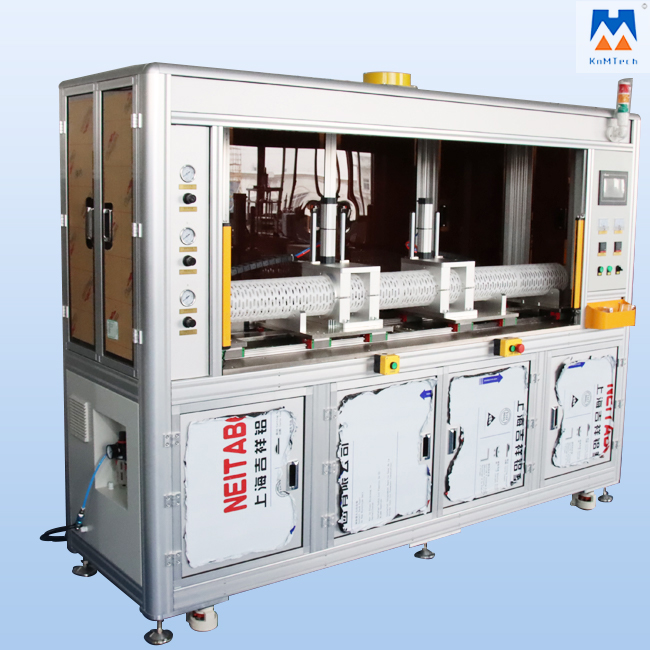

Hydraulic Control Hot Plate Welder for Large-Sized Plastic Parts Welding
Control system:
Programmable PLC made in Germany (Siemens) and Touch screen control are used in the whole process of operation.
Automatic or Manual operation are available for your option.
Alarming system:
In operation=green, finished =yellow, malfunction=red, which can be used together with the alarming device for malfunctions.
The electrical cabinet:
The electrical cabinet is separate from the welding machine, and the circuits are designed as modules as per functions and modules for strong current and weak current, for easy maintenance.
Technical parameters:
| Product Name: | Hydraulic Hot Plate Welding Machine |
| Voltage: | 420V 50/60HZ 3-phase |
| Max. Power: | 60KW |
| Compressed airflow: | 110L/MIN |
| Total weight of the machine: | about 800KG |
| Air pressure scope for this machine: | 6 kg/c㎡ |
Components of heating mold mechanism:
The heating mold mechanism is composed of cylinders, precise linear guide rails, and mounting parts.
The pneumatic system and stepping motor are drivers, which are pulling back and forth of the heating mould alongside the two gliding guide rails.
9-stage temperature control data will be displayed on the touch screen.
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
45-60 work days since order confirmation.
3. What's the warranty of your hot plate welding machines?
One year Warranty with none human damage.
In this period factory, will responsible for repair fix it for free or the factory will send the new parts to the customer instead of the broken parts for free. After warranty time, the factory will repair fix it or send the new parts at the cost price.
4. How can I get your price and catalog?
Please E-mail us or call us to give your contact information(your name, email address, company name, and website)
5. Can we agent your hot plate welding machines in our country or city?
Of course. We are looking for a sole agent in the country who has the willingness to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders;50%T/T in advance as a deposit;50%T/T paid before shipment.
7. Do you provide samples? is it free or extra?
Yes, we could offer the sample and it's not free.
8. could you make it according to our special requirements?
Of course, we can do that. Please tell us your idea or your application.
9. How about the quality?
We have exported to many other customers from all over the world, the feedback is good, quality ranks first in our company.
Detailed Photos:
